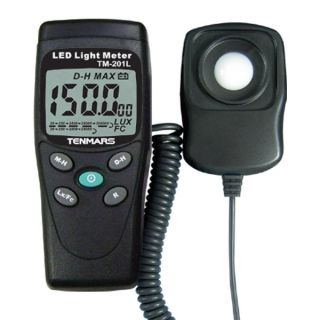

TM-201L LUX/FC LED Light Meter
Model No.: : TM-201L Product Description •According to JISC1609:1993 and CNS 5119 general A class specifications. •Spectral responce close to CIE luminous spectral efficiency. •Measuring intensities of illumination in Lux or Foot-candle. •Silicon photodiode and filter. •Measuring lights source include all visible light sources. •Length of wire for light sensor: approximately 1.5M.
Listing Details
Application
- LED white light Luminous Intensity Measurement.
Specification
Display:
- 3½ digits LCD with maximum reading 1999.
Functions:
-Max Hold
-Manual zero adjustment
-Manual ranging
Specifications:
|
Measuring range |
200, 2,000, 20,000, 200,000 Lux, |
|
Accuracy |
+/-3% (Calibrated to standard incandescent lamp 2856º K) and corrected LED day while-light spectrum.+/-8% other visible light source |
|
Meter size (L*W*H) |
130x55x38mm |
|
Sensor size (L*W*H) |
80x55x25mm |
|
Weight (including battery) |
250g |
