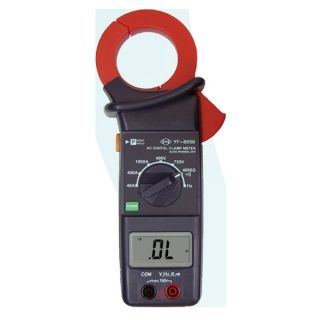

YF-8050 AC Clamp Meter
Model No.: : YF-8050
Product Description
CAT III 1000V
3-3/4 digit LCD display with maximum reading of 4000.
Overload indication.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1000A.
Peak Hold.
Test Ranges: ACV, ACA, Resistance, Frequency, Continuity.
Non-contact frequency measurement.
Auto Power Off.
Double Injection outer case.
Product Description
CAT III 1000V
3-3/4 digit LCD display with maximum reading of 4000.
Overload indication.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1000A.
Peak Hold.
Test Ranges: ACV, ACA, Resistance, Frequency, Continuity.
Non-contact frequency measurement.
Auto Power Off.
Double Injection outer case.
Listing Details
Specification
Maximum Current
1000 Amps
Display
4000 counts
Max. Conductor Size
52mm
AC Current
1mA to 1000A, ±(1.5% of rdg + 4 dgts)
AC Voltage
0.1V to 750V, ±(1.0% of rdg + 4 dgts)
Resistance
0.1Ω to 4000Ω, ±(1.0% of rdg + 2 dgts)
Continuity Buzzer
Yes
Frequency
1Hz to 4000KHz, ±(0.8% of rdg + 3 dgts)
Auto Power Off
Yes
Peak Hold
Yes
Dimensions
250mm (L) x 70mm (W) x 35mm (D)
Weight
420g
