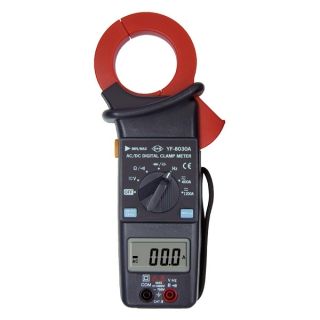

YF-8030A AC/DC Clamp Meter
Model No.: : YF-8030A
Product Description
CAT III 1000V
3-3/4 digit LCD with maximum reading of 4000.
Overload indication.
Automatic polarity.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1200A.
DC voltage range: 0 to 1000V.
DC current range: 0 to 1200A
Min/Max, Zero (REL).
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Frequency, Diode, Capacitance, Continuity.
Auto Power Off.
Product Description
CAT III 1000V
3-3/4 digit LCD with maximum reading of 4000.
Overload indication.
Automatic polarity.
Low battery indication.
AC voltage range: 0 to 750V.
AC current range: 0 to 1200A.
DC voltage range: 0 to 1000V.
DC current range: 0 to 1200A
Min/Max, Zero (REL).
Test Ranges: ACV, ACA, DCV, DCA, Resistance, Frequency, Diode, Capacitance, Continuity.
Auto Power Off.
Listing Details
Specification
Maximum Current
1200 Amps
Display
4000 counts
Max. Conductor Size
52mm
AC Current
0.01A to 1200A ±(2.0% + 5 dgt)
AC Voltage
0.1mV to 750V ±(1.2% + 3 dgt)
DC Voltage
0.1mV to 1000V ±(1.5% + 5 dgt)
DC Current
0.01A to 1200A ±(1.5% + 5 dgt)
Resistance
0.1Ω to 40MΩ
Continuity Buzzer
Yes
Diode
Test voltage
Capacitance
1pF to 30pF
Frequency
0.01Hz to 500KHz
Bargraph
Yes
Autoranging
Yes
Auto Power Off
Yes
Min/Max
Yes
REL (Zero)
Yes
Dimensions
221mm (L) x 62mm (W) x 35mm (D)
Weight
500g
