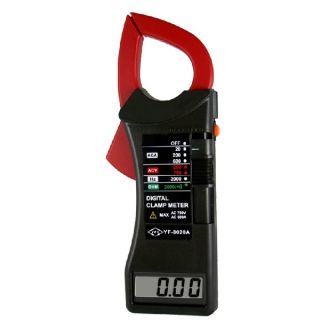

YF-8020 AC Clamp Meter
Model No.: : YF-8020A
Product Description
3-1/2 digit LCD with maximum reading of 2000.
AC voltage range: 200V, 750V.
AC current range: 20A, 200A, 600A.
Resistance measurement to 2000 ohms.
Product Description
3-1/2 digit LCD with maximum reading of 2000.
AC voltage range: 200V, 750V.
AC current range: 20A, 200A, 600A.
Resistance measurement to 2000 ohms.
Listing Details
Specification
Maximum Current
600 Amps
Display
2000 counts
Max. Conductor Size
35mm
AC Current
0.1A to 600A, ±(2.0% of rdg + 5 dgts)
AC Voltage
0.1V to 750V, ±(1.2% of rdg + 3 dgts)
Resistance
1Ω to 2000Ω,
Dimensions
209mm (L) x 77mm (W) x 36mm (D)
Weight
260g
