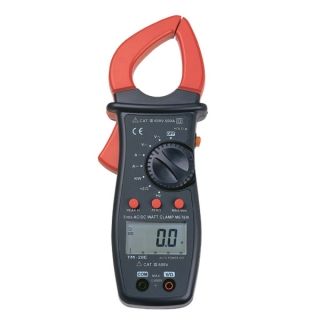

TM-28E_TRMS AC/DC WATT Clamp Meter
Model No.: : TM-28E
Product Description
CAT III 600V
3-3/4 digit LCD, Backlit Display with maximum reading of 4000.
High-speed bargraph.
True-Rms.
Watt measurement: 400KW
Data Hold, Peak Hold, Min/Max, and Zero functions.
AC/DC volts, AC/DC current, Resistance, Frequency, Watts, Continuity.
Autoranging.
Relative (REL) zero adjust.
Maximum conductor size 35mm.
Low battery indication.
Overload indication.
Continuity buzzer.
Auto power off.
Product Description
CAT III 600V
3-3/4 digit LCD, Backlit Display with maximum reading of 4000.
High-speed bargraph.
True-Rms.
Watt measurement: 400KW
Data Hold, Peak Hold, Min/Max, and Zero functions.
AC/DC volts, AC/DC current, Resistance, Frequency, Watts, Continuity.
Autoranging.
Relative (REL) zero adjust.
Maximum conductor size 35mm.
Low battery indication.
Overload indication.
Continuity buzzer.
Auto power off.
Listing Details
Specification
Maximum Current
600 Amps
Display
4000 counts
Max. Conductor Size
35mm
AC Current
0.1A to 600A, ±(2.0% of rdg + 5 dgts)
AC Voltage
0.1V to 600V, ±(1.2% of rdg + 7 dgts)
DC Current
0.1A to 600A, ±(1.5% of rdg + 5 dgts)
DC Voltage
0.1V to 600V, ±(1.0% of rdg + 3 dgts)
Resistance
1Ω to 4000Ω,
Continuity Buzzer
Yes
Frequency
1Hz to 400KHz
AC/DC Watts
0.1W to 400KW, ±(5.0% of rdg + 5 dgts)
Backlit Display
Yes
Autorange
Yes
High Speed Bargraph
Yes
Auto Power Off
Yes
Min/Max
Yes
REL (zero adjust)
Yes
Data Hold and Peak Hold
Yes
Dimensions
218mm (L) x 75mm (W) x 43mm (D)
Weight
375g
